A510



A510 Advanced, Top performing, Full Vector Drive


Designed for heavy overload  and demanding applications  such as crane, lift, elevator, drill, punching and pressing machines. Auto-tuning function enables the best performance to be obtained from the motor providing optimum motor and system efficiency.  A510 has Integrated control for induction and permanent-magnet motors.

Key Features

  • 3ph 200V or 400V from 0.75kW till 315kW
  • Five motor control modes – V/F, V/F with feedback, Current Vector control with & without feedback, PM Vector COntrol with Feedback

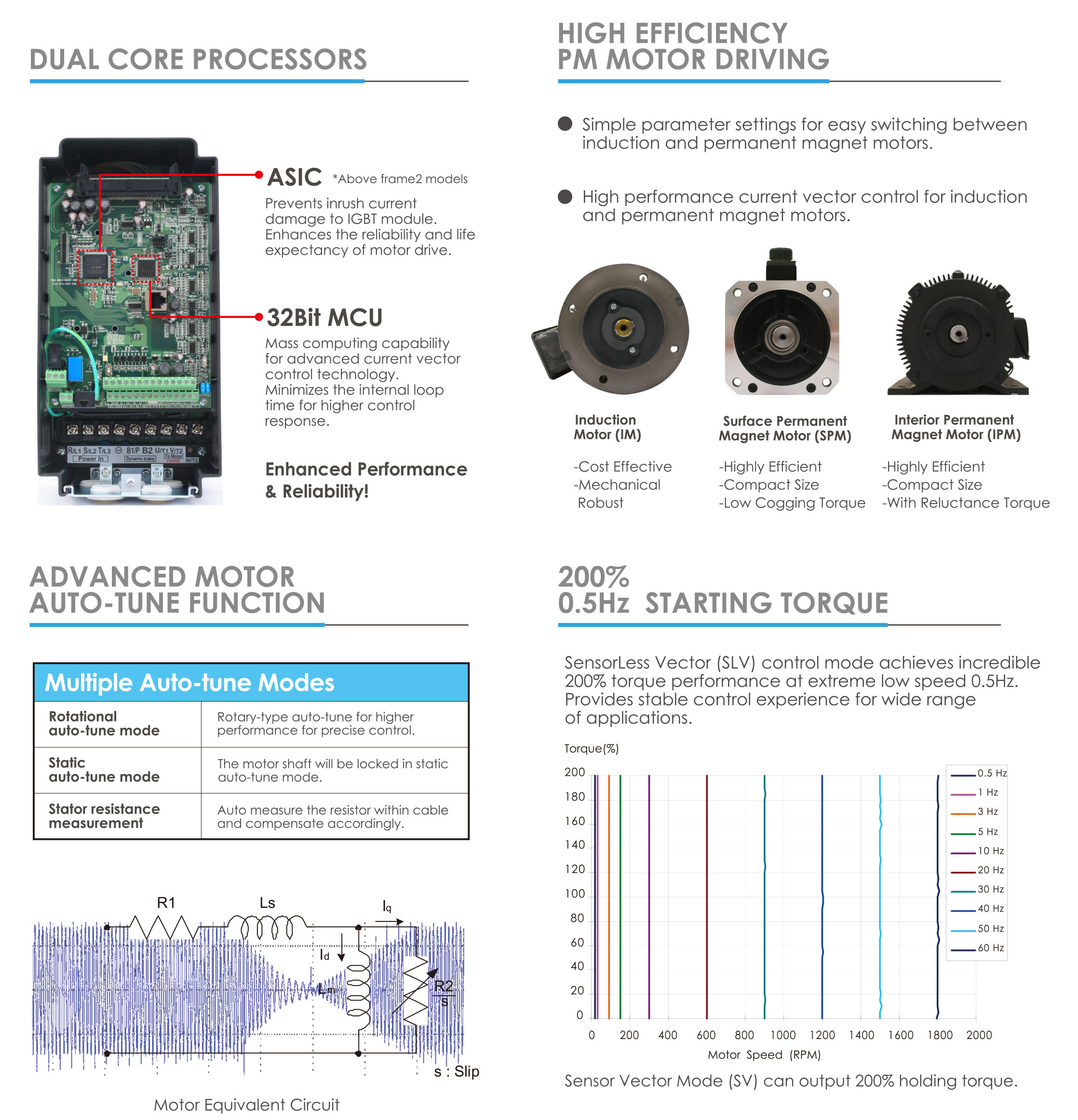

  • Dual core processor, 100mhz RISC processor and ASIC
  • Removable LED Keypad; LCD as option
  • Intergrated EMC filter
  • 0-400Hz output frequency (1200Hz via special Parameter)
  • 150% & 120% (HD & ND) with 200% torque at 0HZ
  • Speed / Torque / Position Control
  • Built-in PLC function (By Ladder Program)
  • Braking Transistor built-in up to 22kW
  • Built-in DCL (above 55 kW)
  • Built-in Modbus (RS485) RJ45 Connector
  • Profibus, DeviceNet, TCP/IP, CANopen options
  • Expansion port for Encoder option boards
  • 690V Option under consideration
  • UL/CE/Gost certification
